ImagePlugin

Image and thumbnail services to display and alignment images using an easy syntax

Use this plugin to control the display and alignment of images using an easy syntax and support for server-side resizing and thumbnailing. There are a set of pre-defined layout formats for images as well as a free layout configurability.

Short example:

You type:

%IMAGE{
  "Westminstpalace.jpg"
  type="frame"
  align="none"
  caption="caption text"
}%

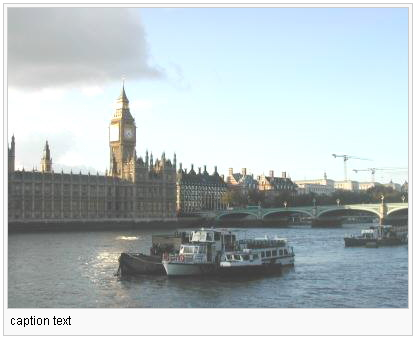

You get:

If installed:

%IMAGE{ "Westminstpalace.jpg" type="frame" align="none" caption="caption text" }%

Images to be displayed can be located

• at the topic as specified,
• at the location specified in the IMAGEALBUM preference variable,
• at the current topic or
• at a remote URL.

If you specify a remote url using http://... the image is downloaded (using CPAN:LWP::Simple) into a local cache and then processed as usual. WARNING: please be aware of any copyrights of the images you mirror this way.

The topic and IMAGEALBUM parameters can be of the for [<web>.]<topic> . For example putting

   * Set IMAGEALBUM = %SYSTEMWEB%.ImagePlugin

into the current topic will search all images at the given topic.

Syntax

%IMAGE{"foo.gif" ...}%

There are four predefined format types (plain, simple, link, thumbnail, frame, float) that can be used by setting the type paramenter (see below). In addition there is a free-form format parameter to specify any other possible html layout. The Wikipedia format is also supported. See Wikipedia:Wikipedia:Extended_image_syntax.

%IMAGE{"clear"}% will create a proper clear for floats elements.

Arguments

The image name is mandatory. Further arguments are optional.

Name	Values	Default
align	left|center|right|none	none
alt	alt text	image filename
caption	caption text	empty
class	(see html specs)	imageFrame, imageFloat, imageResponsive, … depending on the type
crop	on/northwest/north/northeast/west/center/east/southwest/south/southeast/off: scrop the image to fit the image into the given aspect ratio; other values than on/off specify the area the croped image gravitates to relative to the original (on=center)	off
data	json added to the image class used by the jquery stub	empty
desc	description text	title text
footer	text to be appended to the html output	empty
format	image layout format string	set by type argument
frame	extract a specific frame or layer from the source file; this comes in handy when rendering a thumbnail for a video clip
layer	alias for frame
header	text to be prepended to the html output	empty
height	integer value	image width
output	image format to convert the input source to	same as source image, except tiff and svg being converted to png
href	hyperlink when clicking on the image	url of the source image
id	(see html specs)	empty
mousein	javascript executed if moving the mouse over the image	empty
mouseout	javascript executed if moving the mouse off the image	empty
refresh	on/off/img to trigger recomputing images	off
rotate	rotate image by the given dregrees	keep original orientation
size	geometry specification	image geometry
style	(see html specs)	empty
title	title text	alt value
tooltipheight	height of tooltip image	300
tooltip	on/off renders an image preview in a tooltip	off
tooltipcrop	on/northwest/north/northeast/west/center/east/southwest/south/southeast/off: same as crop but used for the tooltip
tooltipwidth	width of tooltip image	300
topic	valid topic name	topic part of IMGALBUM value or current topic
transparent	color to be converted to transparent
type	simple, plain, link, thumb[nail], frame, float or src	plain
warn	on/off, surpress error warnings	on
web	valid web name	web part of IMGALBUM value or current topic
width	integer value	image width
zoom	on/off to scale images, if set to "on" scaling up images is allowed, otherwise it downscales only	off
filter	one or more image filters to be applied to the image; see below

Image geometry

The image geometry in the size parameter can be specified in a format <width>[px][x<height>[px]], that is width and height can be given as integers with an optional px, where the height is optional, separated with a 'x' in between. Note, that the given width and height values are the maximum width and maximum height that the image will have keeping its aspect ratio. If you want to deform it to an exact measure use the width and height arguments.

Note, that you must set zoom="on" to scale images up. Otherwise images smaller than the given geometry will stay as they are. For instance, when generating thumbnails it is preferable to keep small icons as they are instead of bloating them up to a standard thumbnail size.

Image Filters

ImagePlugin comes with a set of low-level and high-level filters that might be applied to an image. High-level filters are a combination of a set of low-level filters to immitate instagram-like modifications to the image.

Low-level fiters

• autogamma()
• autolevel()
• background(color)
• blueshift(factor)
• blur(radius, sigma)
• brightness(value)
• charcoal(radius, sigma)
• colorize(fill, blend)
• contrast(geometry)
• emboss(radius, sigma)
• equalize(channel)
• gamma(value)
• grayscale(factor)
• hue(value)
• level(level, level, …)
• levelcolors(color1, color2, invert)
• negate()
• noise(value, attentuate)
• normalize(channel)
• oilpaint(radius)
• posterize(levels)
• saturate(value)
• sharpen(radius, sigma)
• tint(fill)

For a more thorough explanation of these filters, please read the color modifications manual of ImageMagick used underneath.

High-level filters

• sepia(factor)
• vignette(factor, color)
• 1977(factor)
• gotham(factor)
• inkwell(factor)
• kelvin(factor)
• moon(factor)
• lomo(factor)
• nashville(factor)
• toast(factor)
• hudson(factor)

Example filters

• autogamma
• gamma(1)
• gamma(2)
• gamma(5)
• gamma(0.8,1.3,1.0)
• grayscale(33%)
• contrast(3)
• grayscale;contrast(3);tint(blue)
• sepia(33%)
• sepia,hue(33.3)
• contrast(3);saturate(160);sepia(60%)
• brightness(50)
• hue(33.3)
• level(25%)
• level(0,75%)
• level(25%,100%)
• level(-25%)
• level(0%,100%,0.5)
• level(0%,100%,2.0)
• levelcolors(green,gold)
• levelcolors(,DodgerBlue)
• levelcolors(Firebrick)
• levelcolors(DarkGreen);autogamma
• levelcolors(navy,lemonchiffon)
• levelcolors(#664B19,#FFFACD);autogamma
• normalize(Yellow)
• noise(Uniform)
• noise(Gaussian)
• noise(Multiplicative)
• noise(Impulse)
• noise(Laplacian)
• noise(Poisson)
• blueshift(0)
• blueshift(0.5)
• blueshift(1)
• blueshift(1.5)
• blur(1,1)
• sharpen(0.4)
• charcoal(,1)
• emboss(1,2)
• vignette(1.5)
• colorize(,50%)
• colorize(blue,10%)
• 1977(33%)
• moon(100%)
• moon(100%);levelcolors(navy,lightyellow)
• toaster(100%)

%IMAGE{"InstagramExamples.jpeg" size="800" style="width:100%;height:auto"}%

Format specification

Format strings given in header, footer and format may contain the following pseudo variables:

Name	Value
$align	value of align argumet
$alt	value of alt argumet
$caption	caption text
$class	value of class argumet
$data	value of data argumet
$desc	value of desc argument
$dollar	replaced with dollar sign ($)
$height	image height
$href	hyperlink url when clicking on an image
$id	value of id argumet
$magnifyIcon	enlage-icon
$mousein	value of mousein argument
$mouseout	value of mouseout argument
$n	replaced with a linefeed (\n)
$nop	replaced with empty string
$origheight	image height of the original image
$origsrc	url of the original image (not the resized one)
$origwidth	image width of the original image
$percnt	replaced with percent sign (%)
$src	image source url
$thumbfile	thumbnail image file name
$style	value of style argumet
$text	link text to be displayed in the "link" layout type
$title	value of title argument
$width	image width

After the layout has been formatted any further TopicMarkup that might be contained is expanded afterwards. Note, that using $percnt and $dollar evaluation order of TopicMarkup can be changed so that arguments are expanded after the IMAGE tag has been computed, whereas the default evaluation order is left-to-right-inside-out.

REST image service

The ImagePlugin implements a REST handler process to generate thumbnails for image attachments on the fly. This handler is then called in an img tag like this:

<img src='%SCRIPTURLPATH{"rest"}%/ImagePlugin/process?
  topic=web.topic;
  file=attachment;
  width=300;
  height=300'
  ...
/>

Arguments to the process handlers are:

Name	Values	Default
topic	topic where the image is attached	BASEWEB.BASETOPIC
file	image filename
crop	cropping mode
filter	filter to be applied to the image
height	height of thumbnail
refresh	on/off/img to trigger recomputing images	off
rotate	degree to rotate the image
size	geometry of thumbnail
width	width of thumbnail
zoom	switch on/off upscaling	off

Examples

• See also Sandbox.ImagePluginFilterTest for an exhaustive sample and test page
• Resize to 100 pixels, text flows right, with caption

  %IMAGE{"Westminstpalace.jpg" size="100" align="left" caption="This is my caption"}%

• Resize to %THUMBNAIL_SIZE% size, and center image

  %IMAGE{"Westminstpalace.jpg" type="thumb" align="center"}%

Configuration

Links to external images

You can turn on downloading and mirroring of images that link to external sites, Example:

$Foswiki::cfg{ImagePlugin}{RenderExternalImageLinks} = 1;

This will download the image and mirror it on the local site. Use the refresh url parameter to check if the external images has updated.

If you also turn on attaching a mirrored image to the current topic, an additional attachment-record is generated for the downloaded external image. Attachments will be marked as hidden. Note, that any auto-attached image will update the topic and with it its timestamp.

$Foswiki::cfg{ImagePlugin}{AutoAttachExternalImages} = 1;

Installation Instructions

You do not need to install anything in the browser to use this extension. The following instructions are for the administrator who installs the extension on the server.

Open configure, and open the "Extensions" section. "Extensions Operation and Maintenance" Tab → "Install, Update or Remove extensions" Tab. Click the "Search for Extensions" button. Enter part of the extension name or description and press search. Select the desired extension(s) and click install. If an extension is already installed, it will not show up in the search results.

You can also install from the shell by running the extension installer as the web server user: (Be sure to run as the webserver user, not as root!)

cd /path/to/foswiki
perl tools/extension_installer <NameOfExtension> install

If you have any problems, or if the extension isn't available in configure, then you can still install manually from the command-line. See https://foswiki.org/Support/ManuallyInstallingExtensions for more help.

Dependencies

Name	Version	Description
Image::Magick	>=6.2.4.5	Required
LWP::UserAgent	>=0	Required
Foswiki::Plugins::JQueryPlugin	>=4.90	Required
Foswiki::Contrib::XSendFileContrib	>=1.00	Optional
Foswiki::Plugins::ZonePlugin	>=1.0	Required for Foswiki < 1.1
